Is this a male-to-female or female-to-female type?

This is an adapter type (female-to-female) attenuator, designed to connect two FC/APC patch cables directly.

What is the difference between this Adapter Type and an In-line VOA?

The primary difference lies in their physical form and installation method: while an In-line VOA comes with fiber pigtails (typically 1 meter) and is designed to be spliced or integrated directly into a system's internal optical path, the Adapter Type VOA features a compact, pigtail-free design. It acts as a mechanical 'bridge' between two existing patch cords, making it the perfect space-saving solution for quick power adjustments on patch panels or ODF mountings without requiring additional splicing.

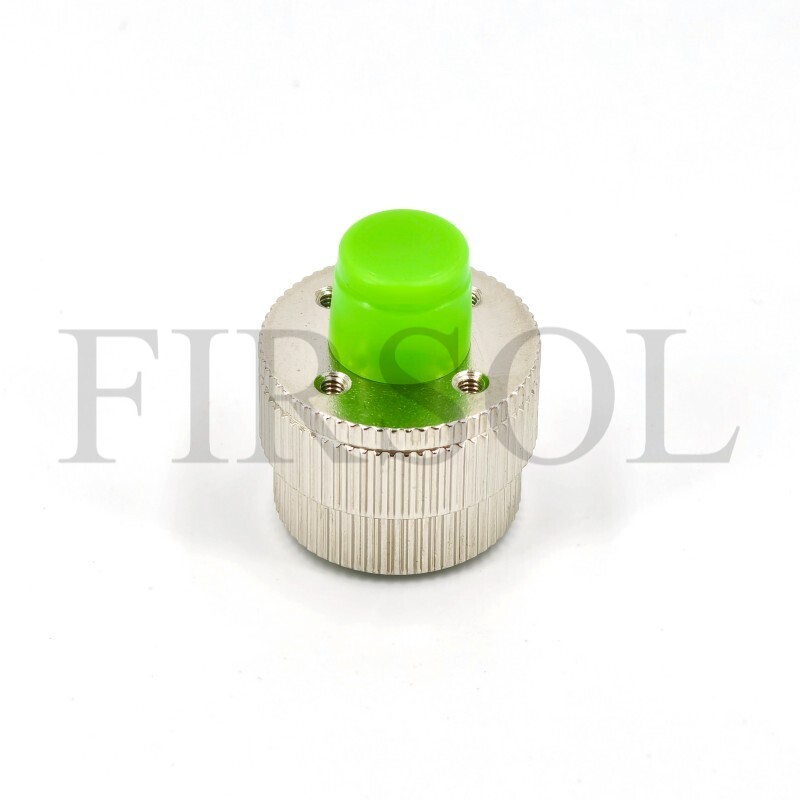

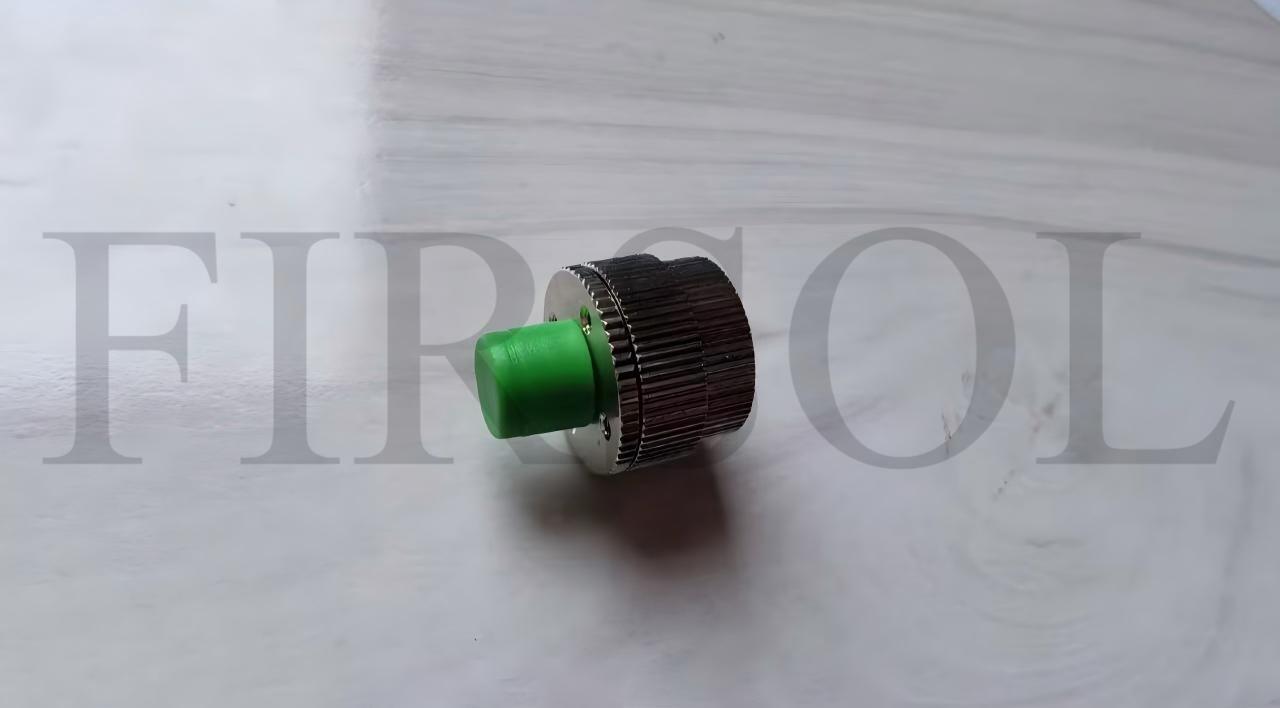

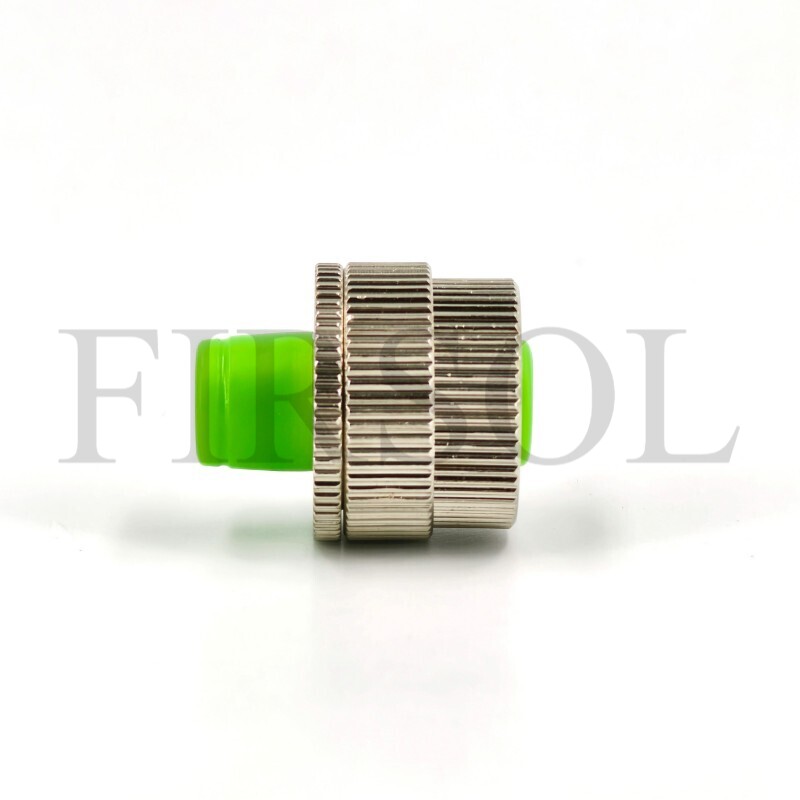

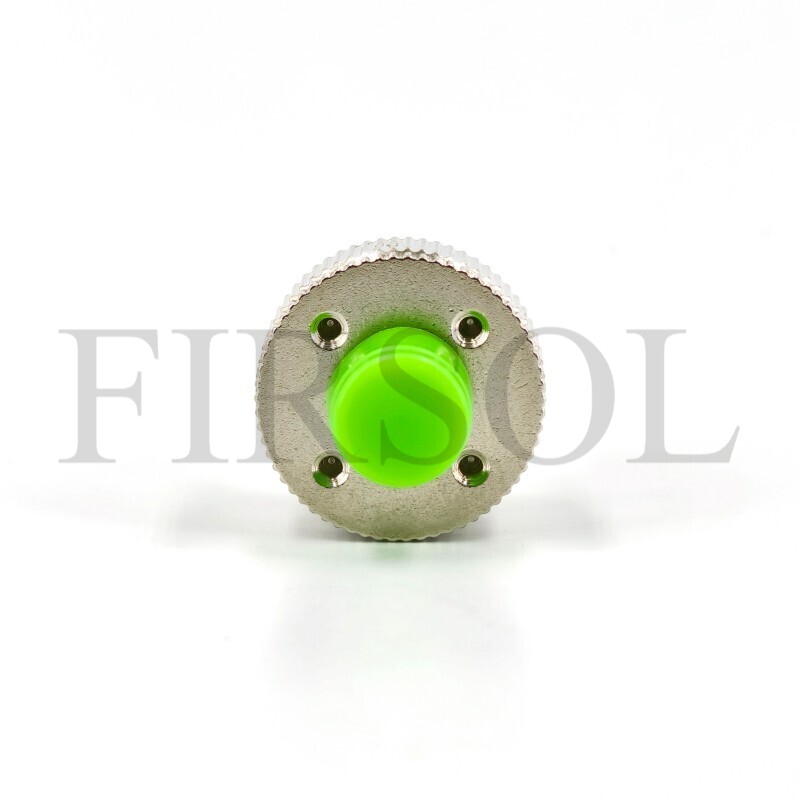

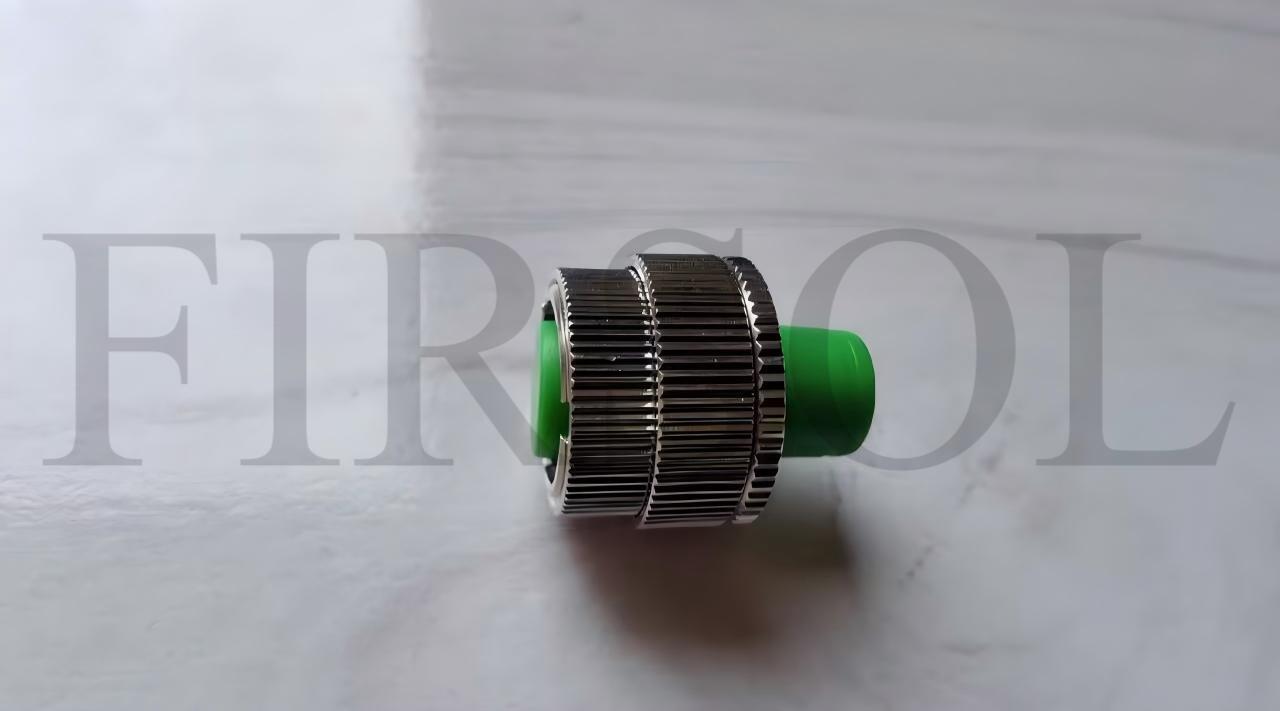

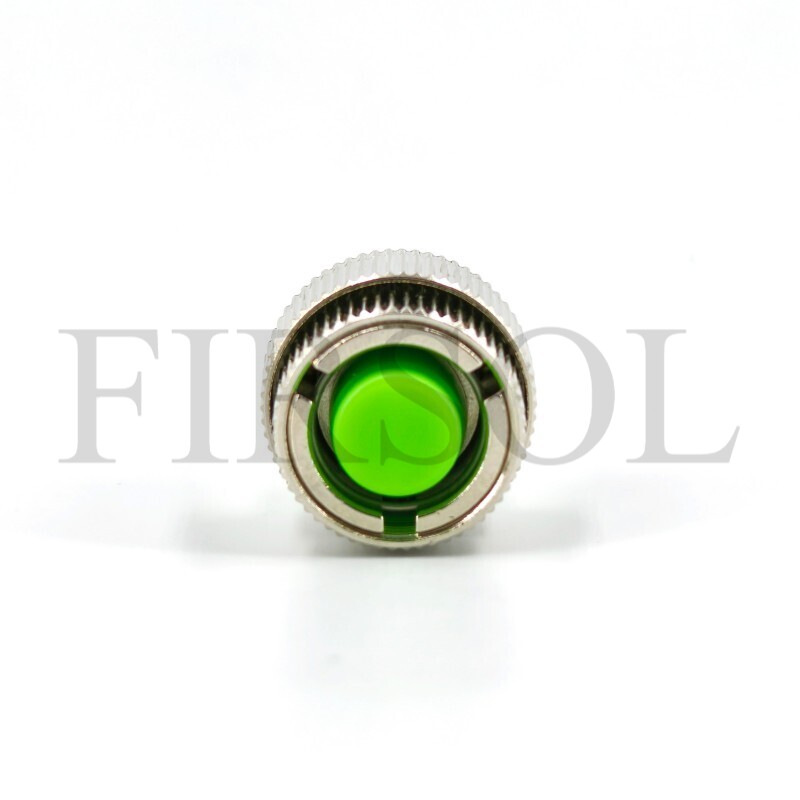

FC/APC Single Mode Adapter Type Variable Optical Attenuator

Name: FC/APC Single Mode Adapter Type Variable Optical Attenuator
Brand: Firsol
SKU: 10119
Price: 17.00 USD
Availability: InStock
Rating: 5.0 (1 reviews)

P/N: FIR-FCAPC-SM-AT-VOA|SKU: 10119

Unit Price

$17.00

MOQ: 1 pcs

Estimated Delivery Timeline

Production time varies based on product type, quantity, and customization level.

Below is a general estimate for most orders. For exact delivery time, please contact [email protected].

Order Confirmed1 day

Production1–15 days

Shipping3–10 days

DeliveredWorldwide

Shipping: FedEx / DHL / UPS Express · Tracking number provided after shipment

1-Year Warranty

30-Day Returns

30-Day Exchange

FC/APC Single Mode Adapter Type Variable Optical Attenuator

The FC/APC Single Mode Adapter Type Variable Optical Attenuator is a compact, plug-in optical attenuation solution designed for precise manual adjustment of optical power in single-mode fiber systems. Featuring an adapter-style (female-to-female) structure, it can be directly installed between two FC/APC connectors without additional fiber pigtails.

This attenuator offers a continuously adjustable attenuation range from 1 dB to 30 dB, enabling flexible signal control in testing, system balancing, and protection of sensitive optical components. The FC/APC interface ensures low back reflection and stable performance in high-precision optical networks.

Specifications

Connector A	FC/APC	Connector B	FC/APC
Fiber Type	Single Mode	Operating Wavelength	1260 ~ 1620nm
Body Style	Simplex	Alignment Sleeve	Zirconia Ceramic
Attenuation	1 ~ 30dB	Attenuation Accuracy	±0.8dB
Durability	1000 Times	Humidity	95%RH
Operating Temperature	-25°C to +70°C	Storage Temperature	-40°C to +85°C

Product Video

FAQ

Q: Is this a male-to-female or female-to-female type?: A: This is an adapter type (female-to-female) attenuator, designed to connect two FC/APC patch cables directly.
Q: What is the difference between this Adapter Type and an In-line VOA?: A: The primary difference lies in their physical form and installation method: while an In-line VOA comes with fiber pigtails (typically 1 meter) and is designed to be spliced or integrated directly into a system's internal optical path, the Adapter Type VOA features a compact, pigtail-free design. It acts as a mechanical 'bridge' between two existing patch cords, making it the perfect space-saving solution for quick power adjustments on patch panels or ODF mountings without requiring additional splicing.
